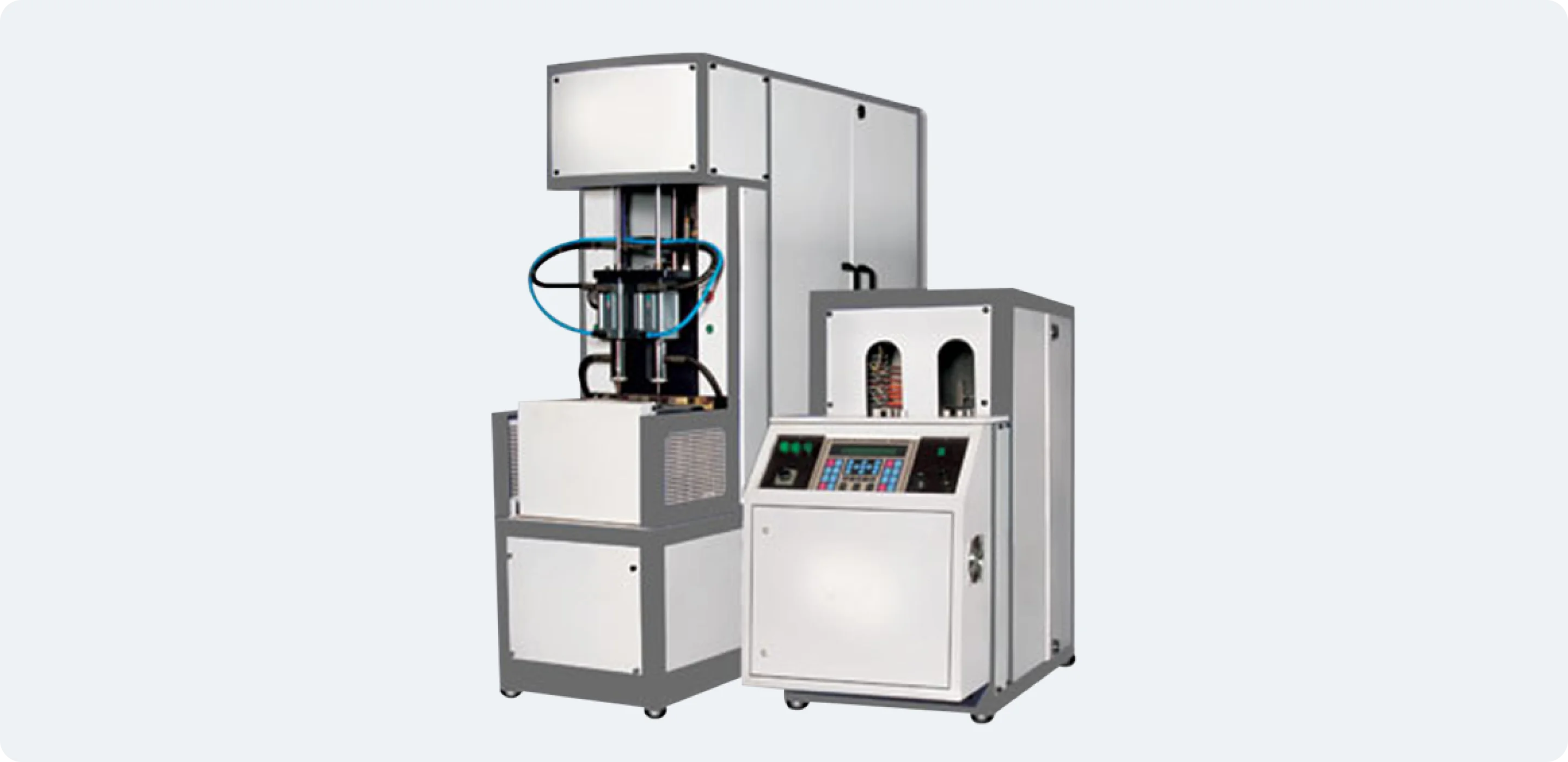

Semi Automatic Pet Stretch Blow Moulding Machine

Shreeji Projects deals in Semi Automatic Pet Blow Moulding Machines.

Yes! I am Interested

Technical Specification

Sr No Particular UWS 60 UWS 120
Blowing Unit
1 Capacity (BPH) 1000 - 1200 1600 - 1800
2 Bottle Ejection System and Method of Bottle Transfer to infeed bay of Filling Machine Bottles automatically ejected from Mould & drop down (Auto Dropping) un-oriented & to be transferred to RFC Bottles automatically ejected from Mould & drop down (Auto Dropping) un-oriented & to be transferred to RFC
3 Type of Machine Operation (Online / Offline) Semi Automatic with Auto Ejection System Semi Automatic with Auto Ejection System
4 Total Electrical Power required to install machine with all accessories 40 HP (410 V x 3 PH x 50 HZ) 40 HP (410 V x 3 PH x 50 HZ)
5 No. of Cavities 2 2
6 Container Height (Min / Max) 50 mm / 300 mm 50 mm / 300 mm
7 Container Volume (Min / Max) 100 ml / 2000 ml 100 ml / 2000 ml
8 Bottle Neck Size 28 mm 28 mm
9 Bottle Neck Type PCO / Three Start / Short PCO / Three Start / Short
10 Bottle Shape Round / Square Round / Square
11 Mould Locking System Hydro-Pneumatic Hydro-Pneumatic
12 Mould Opening 150 mm 150 mm
13 Mould Cavity Distance 110 mm 110 mm
14 Mould Thickness 150 mm - 160 mm 170 mm
15 Cavity Pitch 150 mm 150 mm
16 Stretching Stroke (Max) 400 mm 400 mm
17 Operational Pressure 8 Kg/cm2 8 Kg/cm2
18 Blowing Pressure 35 Kg/cm2 35 Kg/cm2
Infra-Red Oven Unit
19 IR Lamps 6 6
20 IR Heating Station 2 4
21 Lamps Rating (W) 2000 500
22 Max. Heating Load 12 KW 12 KW
23 Motor & Other Load 1 KW 1 KW
24 Total Power Consumption 13 KW 13 KW
Auxiliary
25 High Pressure Air Compressor 30 Bar / 54 CFM (20 HP) 25 Bar / 70 CFM (25 HP)
26 Chiller 2 Ton / 50 LPM / 10Degree 2 Ton / 50 LPM / 10Degree
27 Air Dryer 40 Bar / 40 CFM 40 Bar / 80 CFM
28 Voltage Servo Stabilizer 20 KVA (3 Phase) 25 KVA (3 Phase)
29 Cooling Tower 10 TR
30 Total Theoretical Load (KW) 30 35
